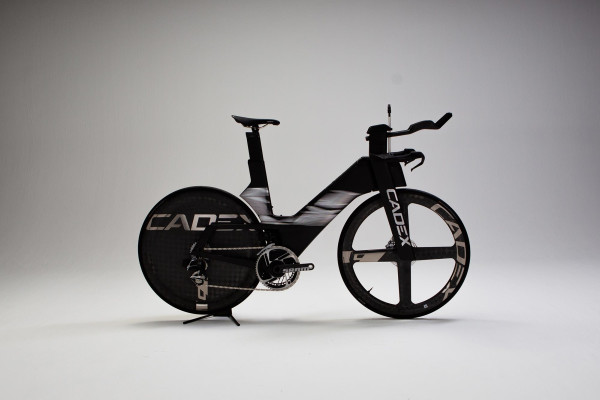

CADEX Tri ?????

CADEX Tri??????????,???????,????,?????????????????????,CADEX Tri??????????????,??Kristian Blummenfelts??Ironman????,??????????SUB7????????????,???????????;??????????,??????????????;????????,????????1000????????,??????????????????????,???????????????????????????????

NT$198,000

????

CADEX Tri??????????,???????,????,?????????????????????,CADEX Tri??????????????,??Kristian Blummenfelts??Ironman????,??????????SUB7????????????,???????????;??????????,??????????????;????????,????????1000????????,??????????????????????,???????????????????????????????

PERSONALIZED FIT

The CADEX Tri frameset makes it easier for athletes of all heights and body dimensions to achieve a perfect fit. Using real-world dimensional as well as stack and height data collected from pro and amateur triathletes, CADEX created five frame sizes and then configured ways for any rider, no matter what frame size they choose, to easily adjust critical fit factors.

ENDURANCE AERODYNAMICS

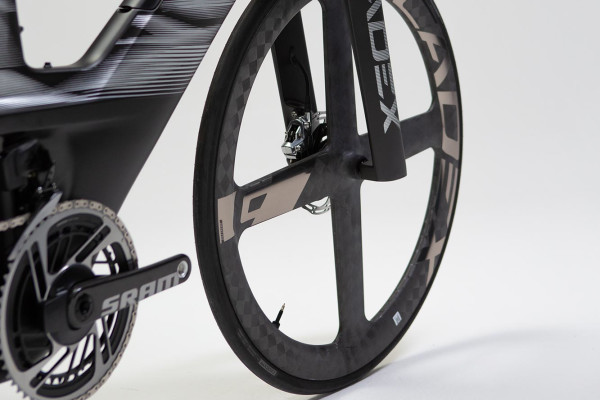

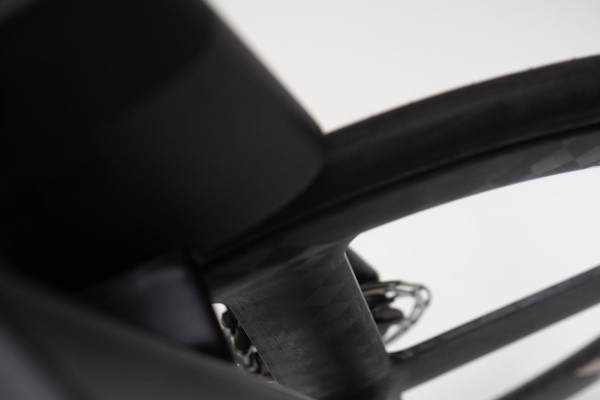

Aero performance goes beyond wind-tunnel data. Using AeroSystem Shaping Technology to create a radical wide-spread, bladed fork, horizontal seatstays and other drag-reducing frame features—along with optimal rider position for Ironman racing—CADEX Tri is about achievable real-world gains.

RACE-READY INTEGRATION

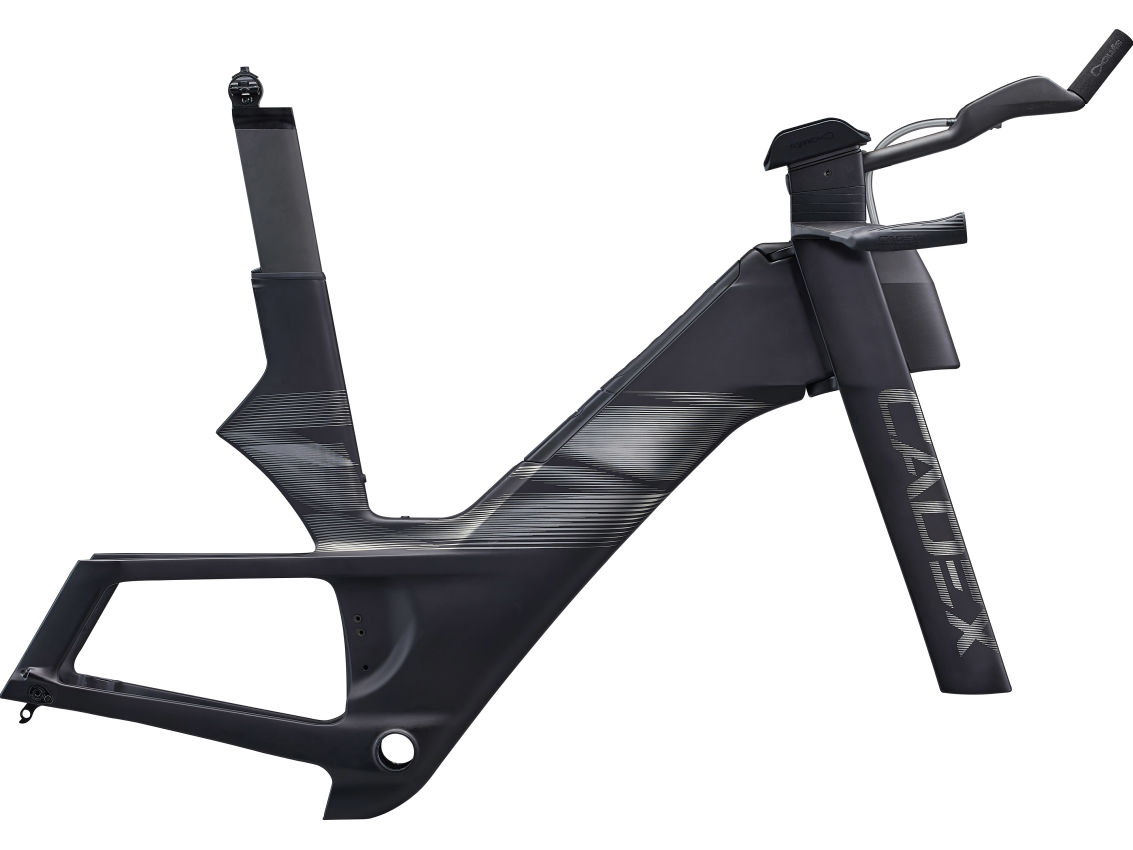

The unique chassis of the CADEX Tri frameset—a massive down tube with no top tube—offers a complete hydration, nutrition and tool storage solution fully integrated into the frame. This design lets riders hydrate and refuel quickly and conveniently from the seated aero riding position while remaining totally self-sufficient on the course.

TOTAL EFFICIENCY

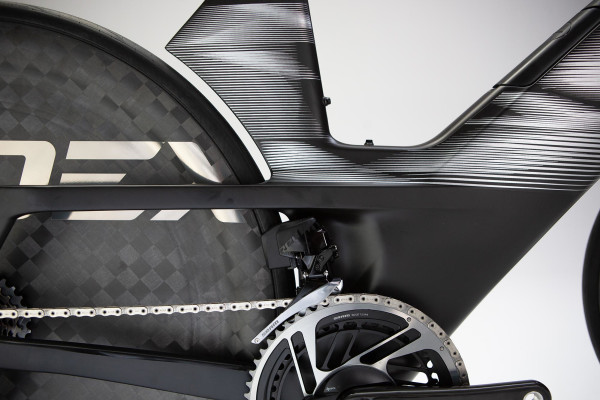

Engineered with the highest grade T1000 carbon fiber and cutting-edge layup techniques, the CADEX Tri frameset boasts class-leading pedaling and torsional stiffness with a total weight of just 4577 grams. Combined with ultra-adaptable fit, groundbreaking endurance aero technology, and a completely integrated hydration and nutrition system, the result is zero watts wasted.

COMPLETE TRAVEL SOLUTION

The CADEX Tri frameset minimizes the amount of disassembly and reassembly needed and comes with a purpose-built, high-impact resistant Topeak travel case featuring airport-friendly wheels, a full interior protection system and built-in work stand.

????

Impossibly Fast | Key Features of Tri Frameset
Impossibly Fast | Key Features of Tri Frameset

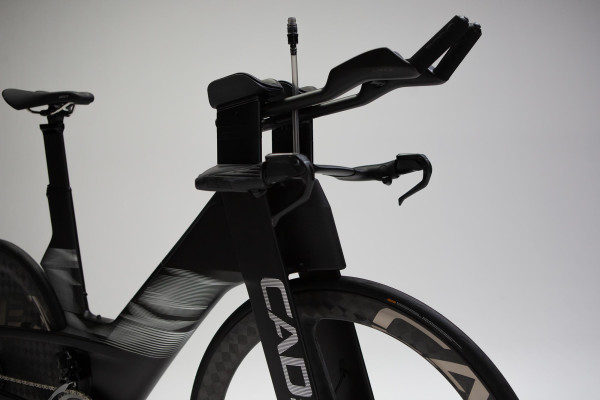

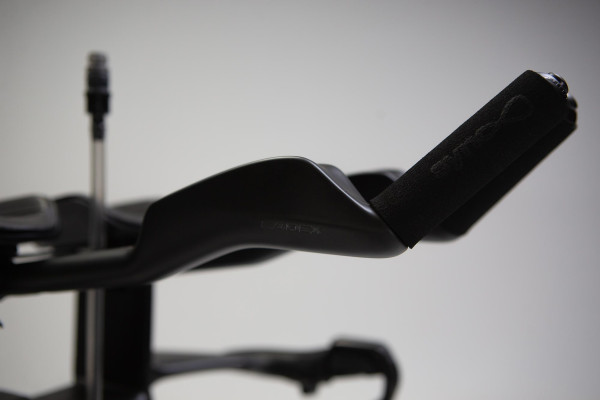

Armrest Stack
Armrest Stack
Armrest Reach & Width
Armrest Reach & Width
Extension Bar Reach & Width
Extension Bar Reach & Width
Armrest Angle
Armrest Angle
Saddle Adjustment
Saddle Adjustment
????
  • ??
    XXS,XS,S,M,L
  • ??
    ???
  • ??
    CADEX Tri ?????
  • ??
    CADEX Tri ??????
  • ??
    CADEX Tri ??????
  • Arm Rest Kit
    CADEX x SYNC?????????
  • Extension Bars
    CADEX x SYNC?????????
  • ??
    CADEX x TOPEAK???????
  • Max Tire Clearance
    ????28c
  • Max Chainring Size
    ????55T
  • ??
    4,576? (M??)

*???????????????????????,??????(??????????????????????),?????????

????

????????,???????????;????????????

bike diagram with measurements referenced in table that follows
  XXSXSSML
Body Height (cm)150 - 162156 - 168164 - 176172 - 186180 - 195
Inseam Height (cm)62 - 7665 - 8070 - 8575 - 9080 - 98
ASaddle Height Range (mm) (inch)540-71017.3580-75018.7620-79020.1660-83021.5700-87022.8
BSeat Tube Length (mm) (inch)44017.347518.751020.154521.558022.8
CSeat Tube Angle (degrees)76 - 80°76 - 80°76 - 80°76 - 80°76 - 80°
DTop Tube Length (mm) (inch)47518.749519.552020.555021.758022.8
EHead Tube Length (mm) (inch)702.8953.71204.71455.71706.7
FHead Tube Angle (degrees)71.0°73.0°73.0°73.0°73.0°
GFork Rake (mm) (inch)401.6401.6401.6401.6401.6
HTrail (mm) (inch)76.1363.32.563.32.563.32.563.32.5
IWheelbase (mm) (inch)96838.197638.4100539.6103940.9107242.2
JChain Stay Length (mm) (inch)40515.940515.940515.940515.940515.9
KBottom Bracket Drop (mm) (inch)803.1803.1773742.9742.9
LArmrest Stack (15D) (mm) (inch)545 - 615xx575 - 645xx595 - 665xx615 - 685xx640 - 710xx
MArmrest Reach (15D) (mm) (inch)340 - 430xx355 - 445xx375 - 465xx400 - 490xx425 - 515xx
Frame Stack (mm) (inch)4831951320.25342155521.957922.8
Frame Reach (mm) (inch)39015.440515.942616.845217.847818.8
NHB Height (mm) (inch)530 - 570xx560 - 600xx580 - 620xx600 - 640xx625 - 665xx
OHandlebar Width (mm) (inch)40015.740015.740015.740015.740015.7
PExtension Width (mm) (inch)110 | 190110 | 190110 | 190110 | 190110 | 190
QArmrest Width (mm) (inch)190 - 310190 - 310190 - 310190 - 310190 - 310
Compatible Wheel Size (mm) (inch)700 x 28C700 x 28C700 x 28C700 x 28C700 x 28C

15D
LArmrest Stack-min (mm)(inch)545575595615640
LArmrest Stack-max (mm)(inch)615645665685710
MArmrest Reach-min (mm)(inch)340355375400425
MArmrest Reach-max (mm)(inch)430445465490515

10D
LArmrest Stack-min (mm)(inch)550580600620645
LArmrest Stack-max (mm)(inch)630660680700725
MArmrest Reach-min (mm)(inch)340355375400425
MArmrest Reach-max (mm)(inch)430445465490515

5D
LArmrest Stack-min (mm)(inch)555585605625650
LArmrest Stack-max (mm)(inch)625655675695720
MArmrest Reach-min (mm)(inch)340355375400425
MArmrest Reach-max (mm)(inch)430445465490515

0D
LArmrest Stack-min (mm)(inch)560590610630655
LArmrest Stack-max (mm)(inch)640670690710735
MArmrest Reach-min (mm)(inch)340355375400425
MArmrest Reach-max (mm)(inch)430445465490515
